How to Make an Illustration Using ArchiCAD

May 10, 2021
Tutorial

There is a multitude of software to learn as an architecture student, graduate and professional. There's no time like the present to build your skills and find a tool that works best for you. Although the usual software as Sketchup and AutoCAD, not to mention Revit as the professional standard, one software we don't hear much of is ArchiCAD. This guest post is by Palash Trivedi who's kindly shown us how to create an illustrative scene in ArchiCAD and post-produce it in Adobe Illustrator and Photoshop.

❗ Note: I am not a pro in any of this software, I am sharing just what I have experienced while working in these. So, I may not be able to provide an in-depth review or analysis, but I have tried to explain what I know in the best possible manner.

What Is ArchiCAD and how did I come to use it?

ArchiCAD is a BIM Software of Graph iSOFT company made for Architects, to produce fast, accurate and complex architectural projects with ease. For those who aren’t aware of BIM, BIM means Building Information Module which basically treats your 3D models with real-time material properties and Information, unlike SketchUp which treats it just as an amalgamation of Surfaces and Fills.

Plus, it has the basic CAD capabilities which can be used to draw in a 2D environment, but here the 3D model will be generated automatically with your 2D work or if you work in a 3D environment(Model Space) then your 2D works which contain the drawings will be created or will get updated automatically.

Do you prefer it over other modelling software like Sketchup, Revit, Rhino and if yes then why?

ArchiCAD vs SketchUp.

My preference is ArchiCAD 100%

SketchUp is easy to use, but so is ArchiCAD. ArchiCAD also contains a MORPH tool which simply works just as the SketchUp works viz. creating solids, push-pull, subtraction & intersection of solids. More than that, as I mentioned previously ArchiCAD works with materials and its information, so all your walls, slabs, roofs, beams etc. will be of actual materials like concrete, steel, bricks, stones etc. based on how you apply and use them in your project. Plus, you don’t have to use two different software such as AutoCAD for 2D work and Sketchup for 3D modelling. Both the process is done in ArchiCAD itself and they will be done simultaneously.

Considering the OBJECTS, ArchiCAD 24 has included many new objects in its library, but if you want to use your own objects like some particular piece of furniture or doors or windows, then you can easily make them in ArchiCAD in a separate file and can use it anytime.

So, in the end, it depends on you on what to use, but if you want to spend more time in Designing instead of drafting and modelling, then I would strongly recommend you to use ArchiCAD.

ArchiCAD vs Revit

I will still go for ArchiCAD.  Here the comparison is not as contrasting as compared to SketchUp as both ArchiCAD and Revit are BIM software’s and both have their pros and cons when compared each other.

Basic qualities

ArchiCAD is one of the oldest BIM or in other words one of the first BIM software’s which came into the AEC industry. Thus, they are more experienced in BIM and Revit which came very later. But in the past few years, Revit has become more famous and used thanks to its Parent company Autodesk which is more famous in the AEC industry than any other company. But it has some advantages also such as it has more plug-ins built-in than ArchiCAD and has a bigger Object library. But in the latest version of ArchiCAD, i.e. ArchiCAD 24, they have integrated the MEP plug-in which can do most of the things which a project needs. In addition to these, ArchiCAD also comes with the integration of LIVE SYNC with RHINO & GRASSHOPPER, hence creating parametric structures will also become more EFFICIENT in ArchiCAD rather than Revit which does have a plug-in called DYNAMO in it for parametric use but it crashes very often and is not that reliable.

Workflow & UI

When it comes to workflow and UX. ArchiCAD is again better than Revit as it is very easy to use as compared to Revit and has a more interesting user interface than Revit. ArchiCAD contains tools like PUSH & PULL, MAGIC WAND & MARQUEE, which can make it very easy and fast to edit and work on your project, but these tools or tools doing similar functions are missing in Revit, which makes it very tough to learn and work as well.

Integration with Structural Engineers and MEP Consultants

Revit has a slight edge here as it has a wide range of plug-ins that are built in it, and secondly due to the already established market of Autodesk due to which many Structural engineers are already working on Revit. But ArchiCAD 24 has been significantly improved in terms of interoperability and management, and it has a better IFC (Industry Foundation Class) export option through which any Structural or MEP consultant can easily work on it, also it as introduced a BIM cloud which can be used for the teamwork with different agencies in the same project. So, it's just a matter of time for ArchiCAD to become better.

Visualization

When it comes to Visualization, both are equal in terms of output which is definitely not as good as the rendering engines like Vray or Lumion. ArchiCAD comes with CINEMA 4D & has recently bought the rights for Twinmotion and UNREAL engine which can be a very good combination but it has just been started and there are many things to improve here.

While Revit also has a decent rendering engine in itself but when compared to other Rendering Software they both fall way behind. But both of the software can be easily used with Lumion so it does not matter much on these aspects.

Conclusion

I have a personal preference for ArchiCAD over Revit due to the above-mentioned reasons, but for students, I would suggest learning both the software as both have their own place in the Industry and both will make your CV very strong.

ArchiCAD vs Rhino

These two cannot be compared directly as they both are used for very different and specific reasons and these can vary from person to person. Rhino is a parametric software that is used for making complex and organic forms while ArchiCAD is a BIM software that is specially made for Architects and can make some level of complex forms in it also. But as I mentioned earlier, ArchiCAD as a plug-in for Rhino & Grasshopper, so making parametric buildings is also very much possible in ArchiCAD also. So, using both of them together would be a much efficient way provided you want to make a parametric building, otherwise just for straight or curved surfaces, ArchiCAD is more than enough.

How to Create the Illustration

Step 1: Creating a View (ArchiCAD)

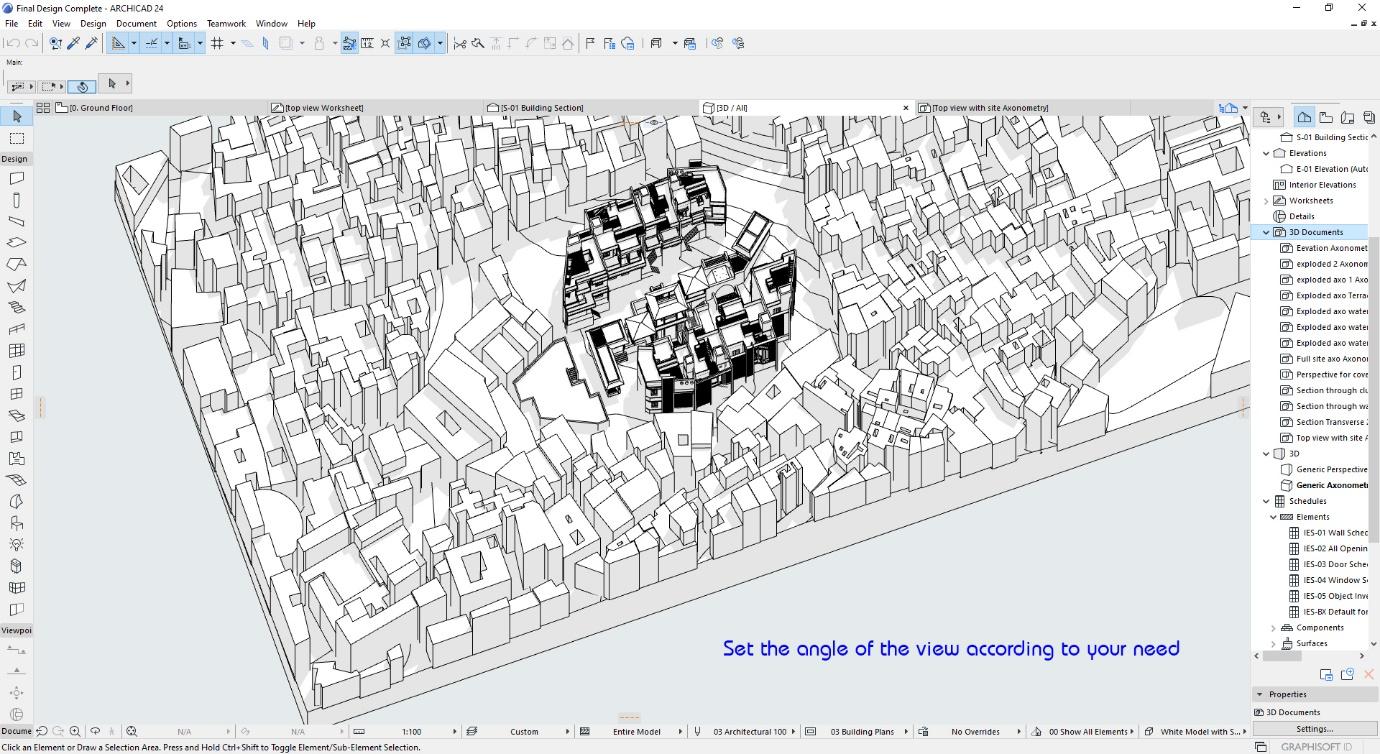

Arrange a Particular View in 3D model space which you wish to generate.

Step 2: Generating a 3D document (ArchiCAD)

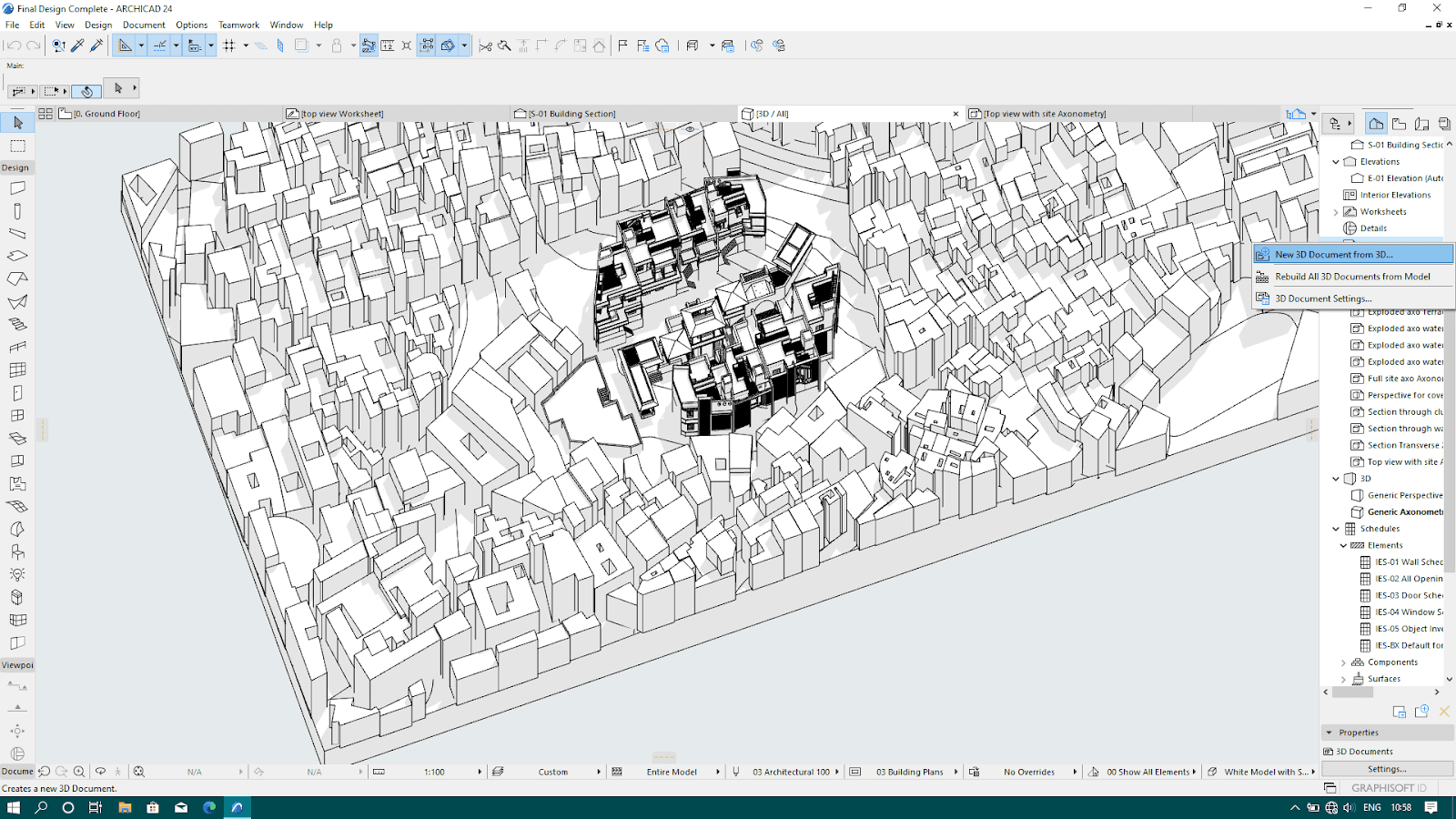

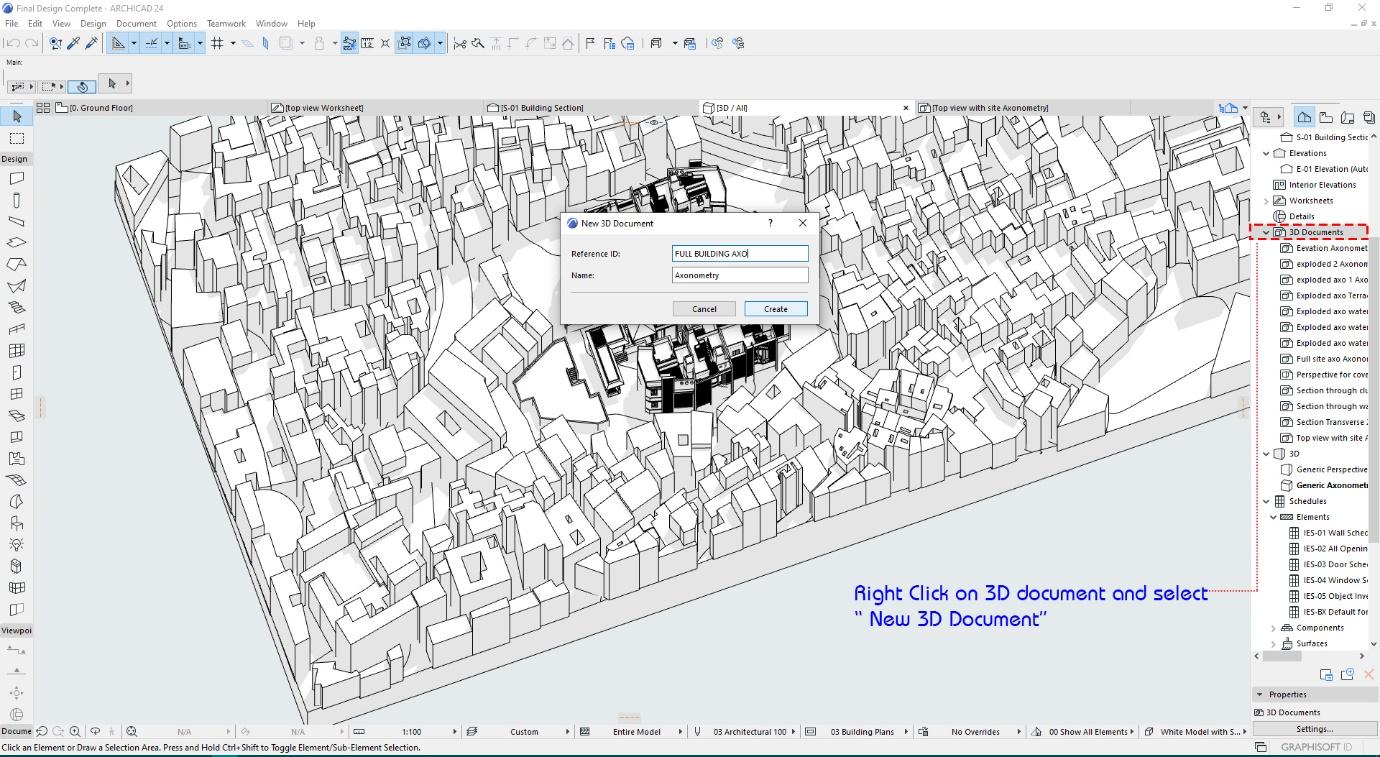

Create a 3D Document of it by right-clicking on the 3D Documents panel on the right side and then select “NEW 3D DOCUMENT FROM 3D”.

It will just create a Separate file of that particular view which you can edit.

❗ Note: ArchiCAD also has different view modes in 3D model Space just like Sketchup,i.e, Hidden Lines, Shaded, Vectorial etc. So I have used a Simple View mode in the View space which shows the model in just black and white surfaces, but the model already has its material properties and surface finishes. So whenever you will make a 3D document, it will be shown in the actual surface finishes which you would be providing while making the model.

Step 3: Creating a Worksheet (ArchiCAD)

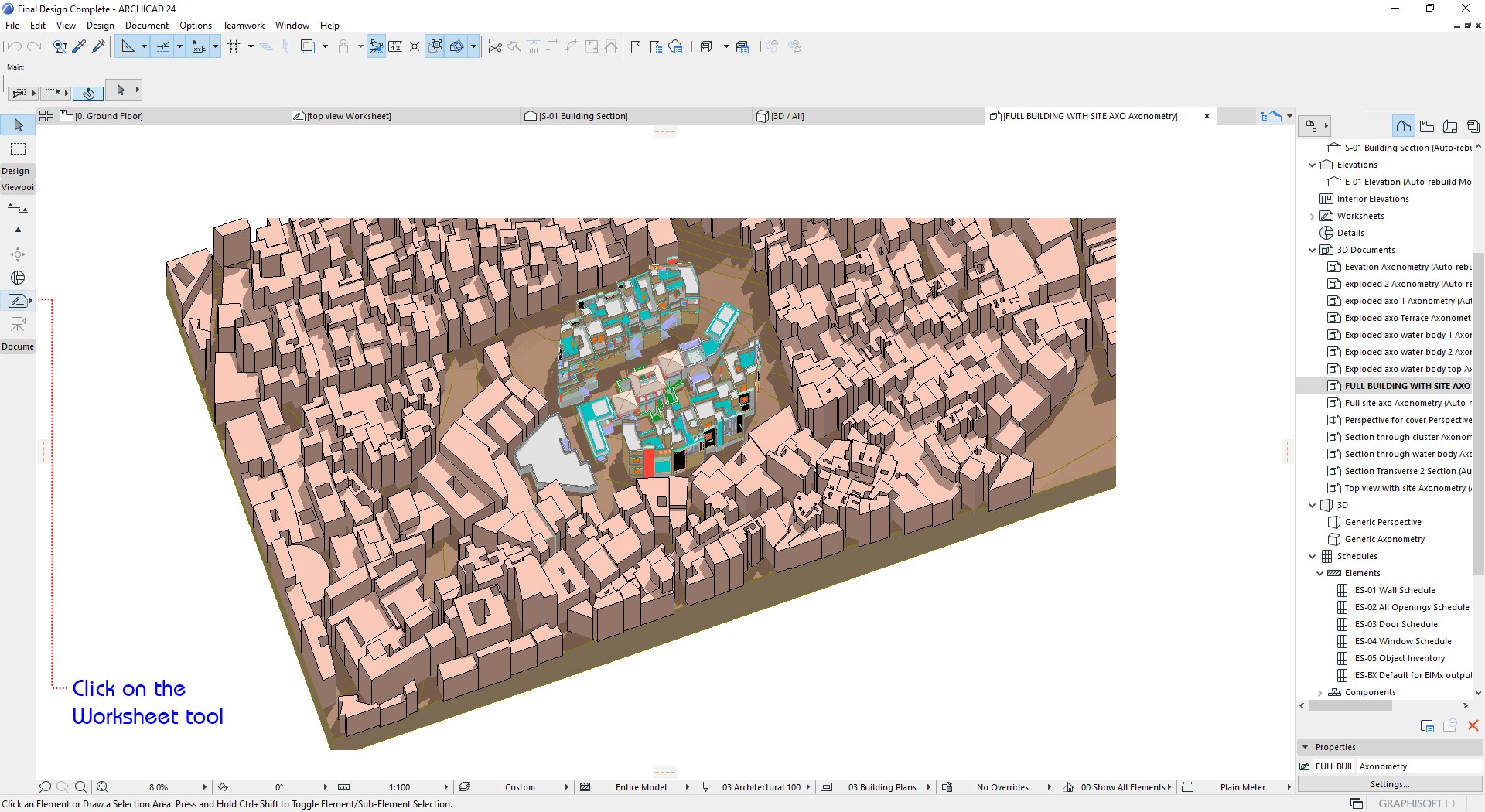

Once you have generated the 3D document, you now have to create a WORKSHEET of that Document. So as shown in the image, without making any changes in the 3D document, just go to that 3D document and click on the worksheet tool in the tool’s panels on the left.

Create the worksheet by dragging down your mouse from top left corner to bottom right corner around the area which you want to export.

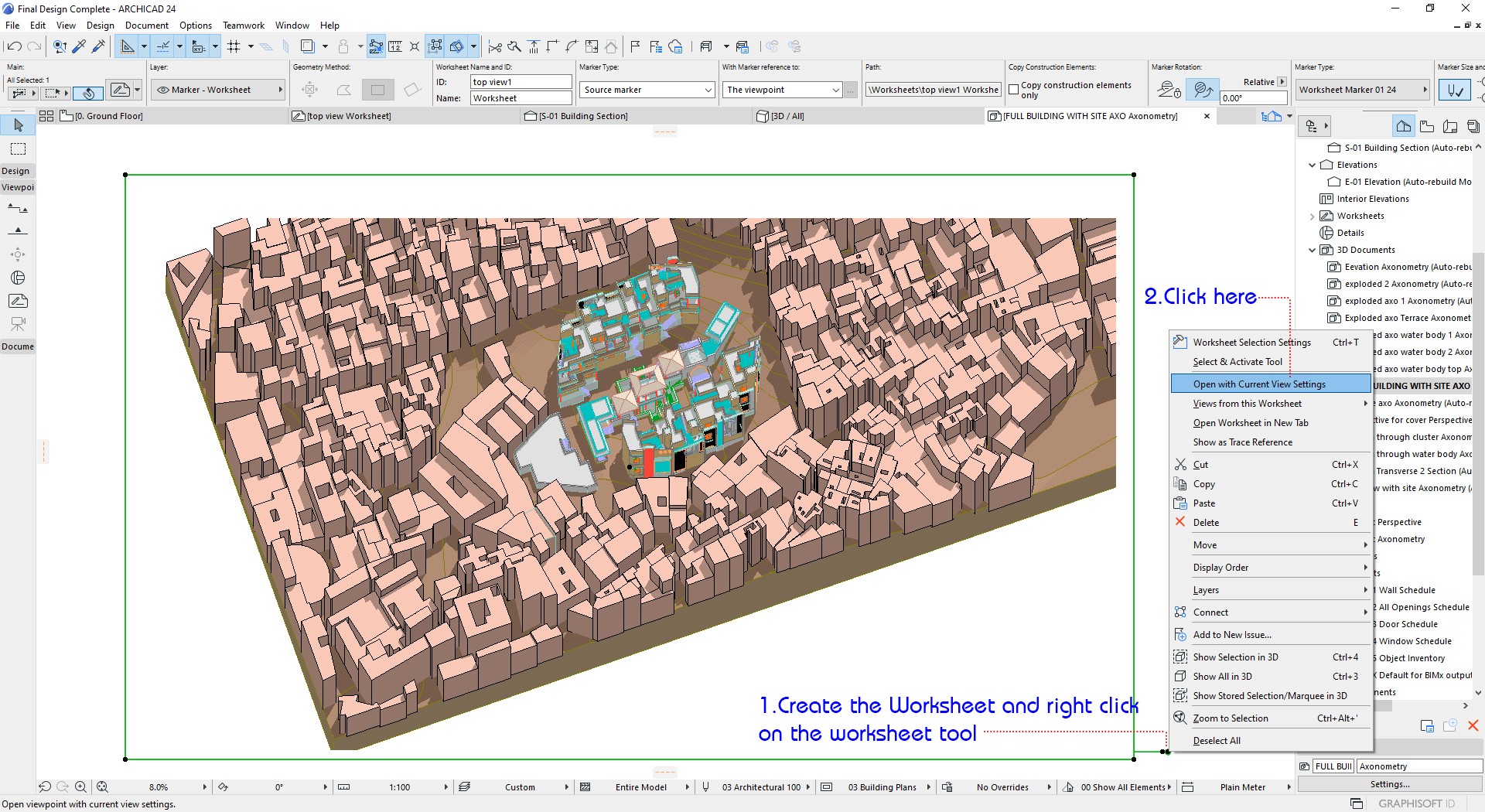

It will show a small circle with the name of the worksheet written inside it on the right side as shown in image. Right click on that circle and then click “OPEN VIEW WITH CURRENT SETTINGS”

Now you have entered the Worksheet which will look like this:

Step 4; Editing the view in Worksheet (ArchiCAD)

Now click on the “Suspend Groups” as shown in image. This will allow you to edit each line and surfaces individually. You can change the color, line type, linewidth of the lines and color, its transparency or any material hatch to the surfaces.

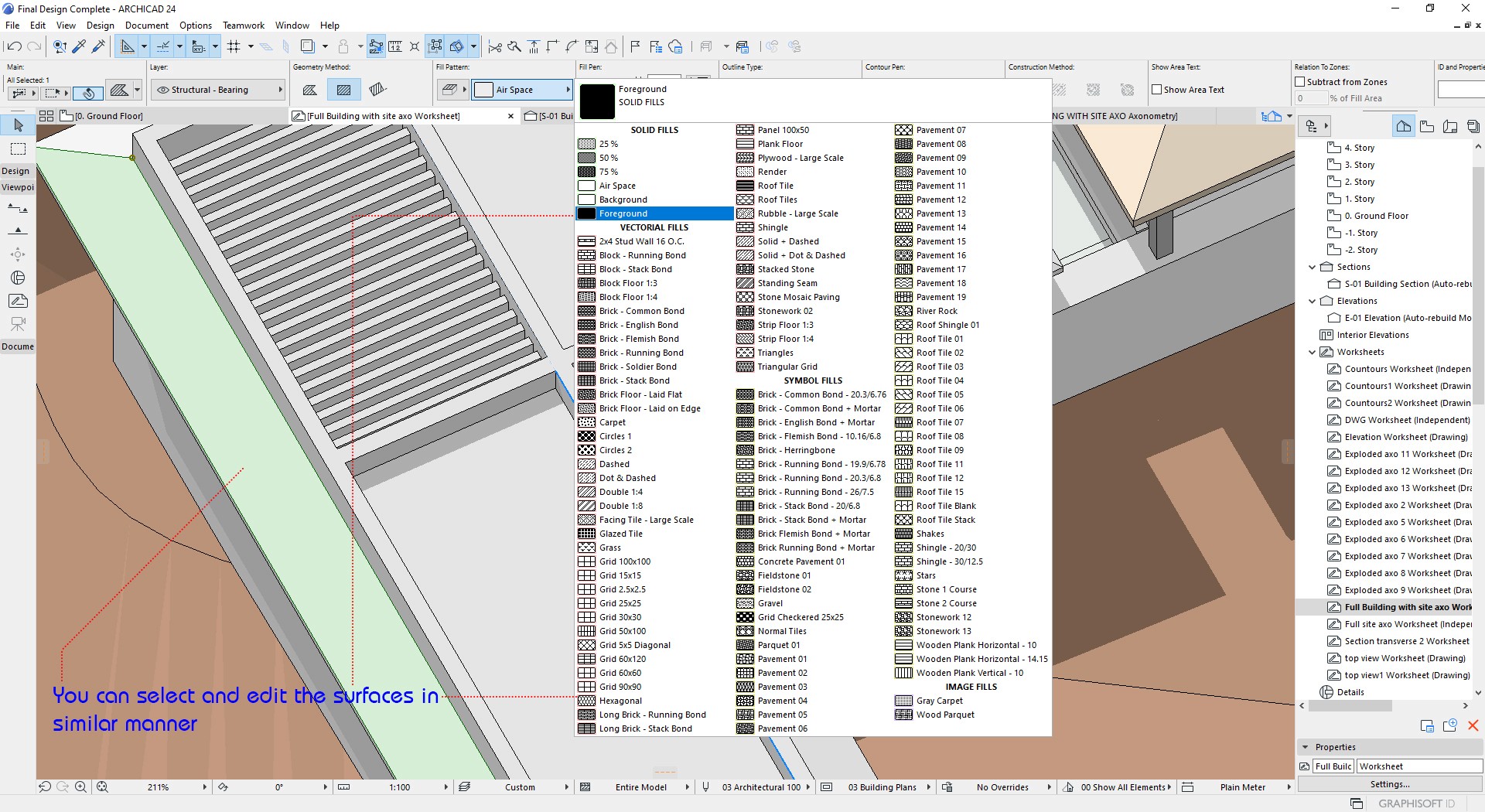

This is how you can edit the SURFACES; just click on the surface you want to edit and all the options will be visible in the toolbar.

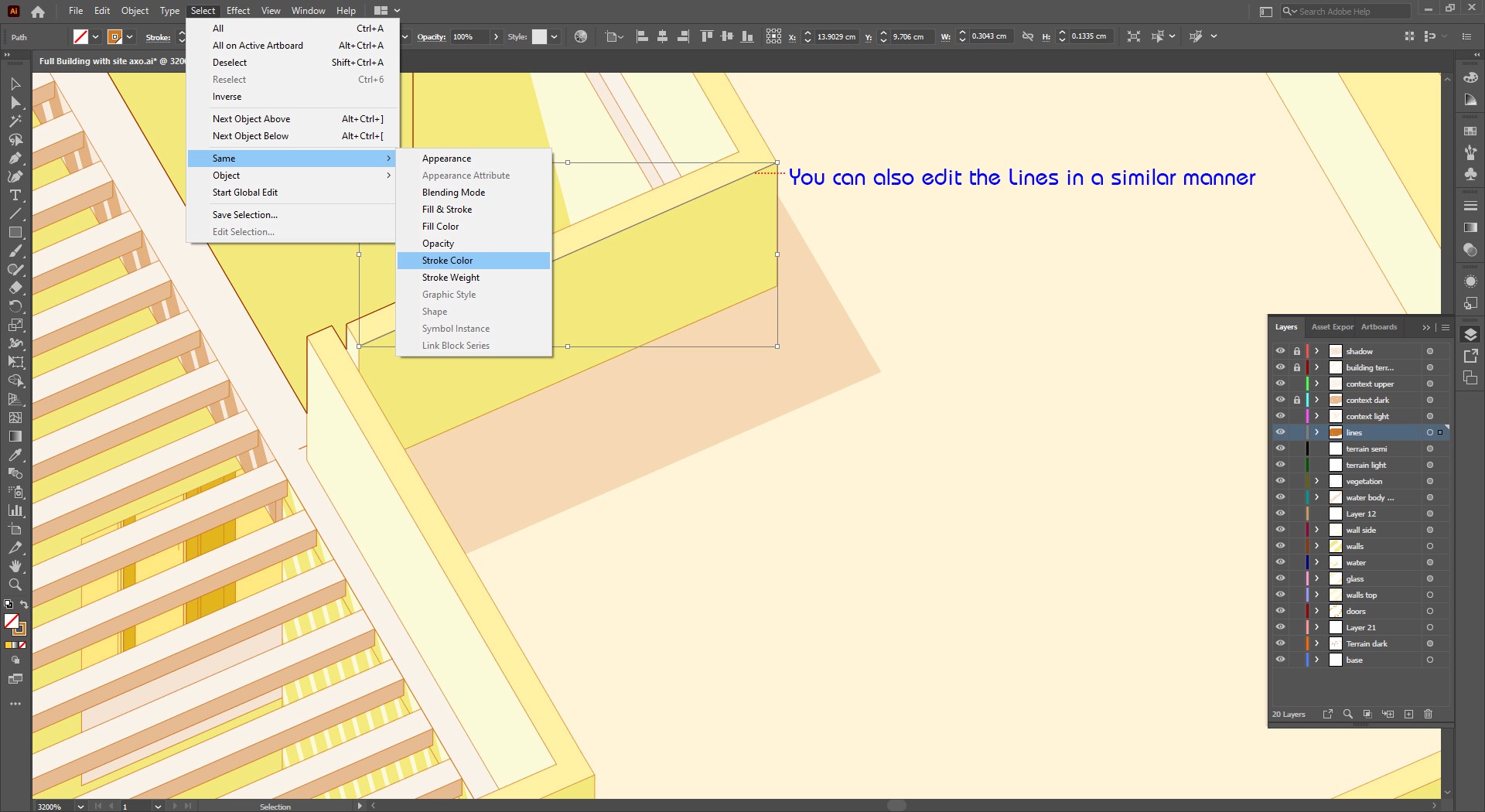

This is how you can edit the LINES

STEP 5; Using Marquee tool (ArchiCAD)

After completing the editing of lines and surfaces, you have to export it as a PDF.

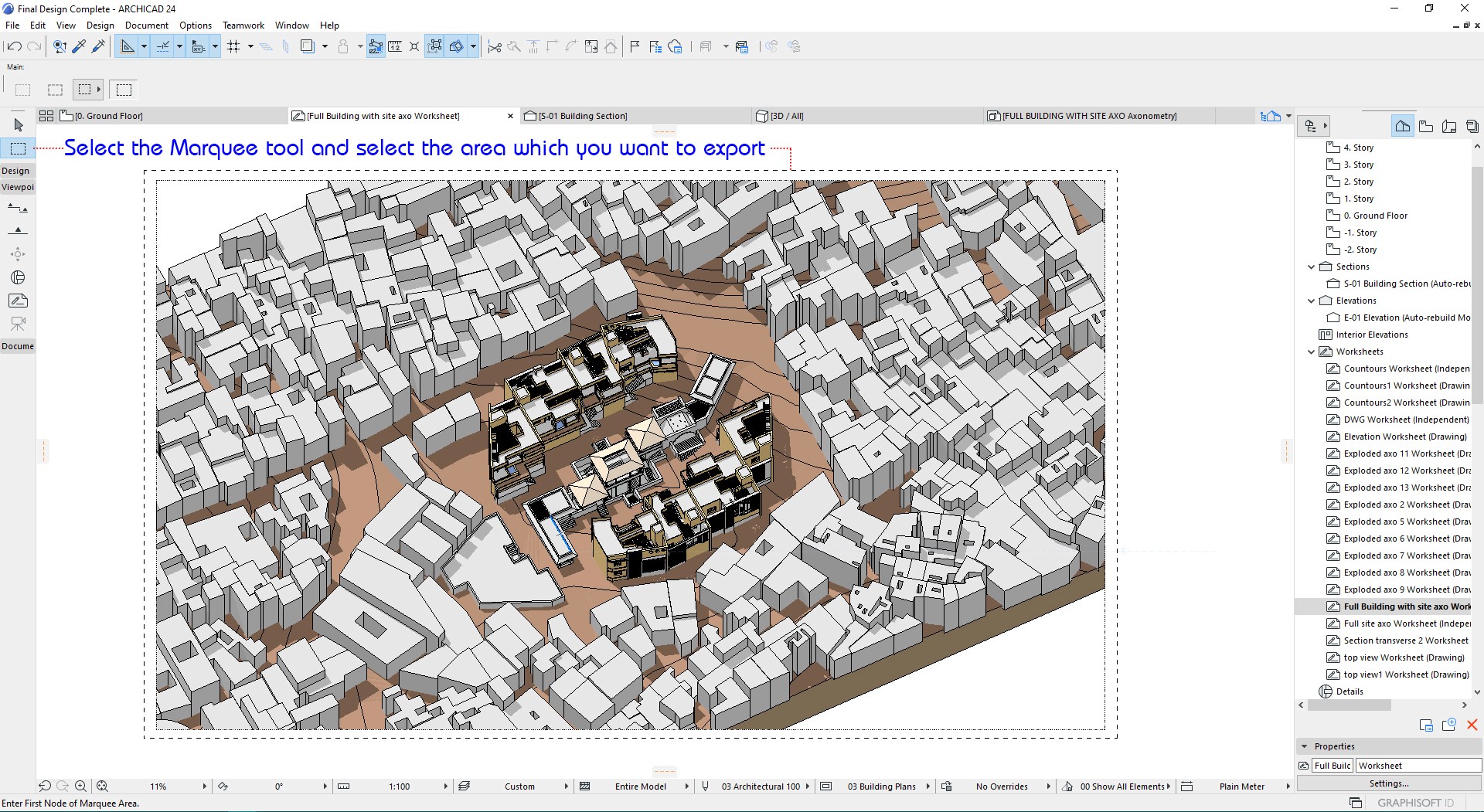

In order to do that, select the MARQUEE TOOL from the tools panel from the left side as shown in the image. Select the whole area as shown.

STEP 6: Exporting as PDF (ArchiCAD)

Now select SAVE AS (Shift+Ctrl+S) and Select PDF.

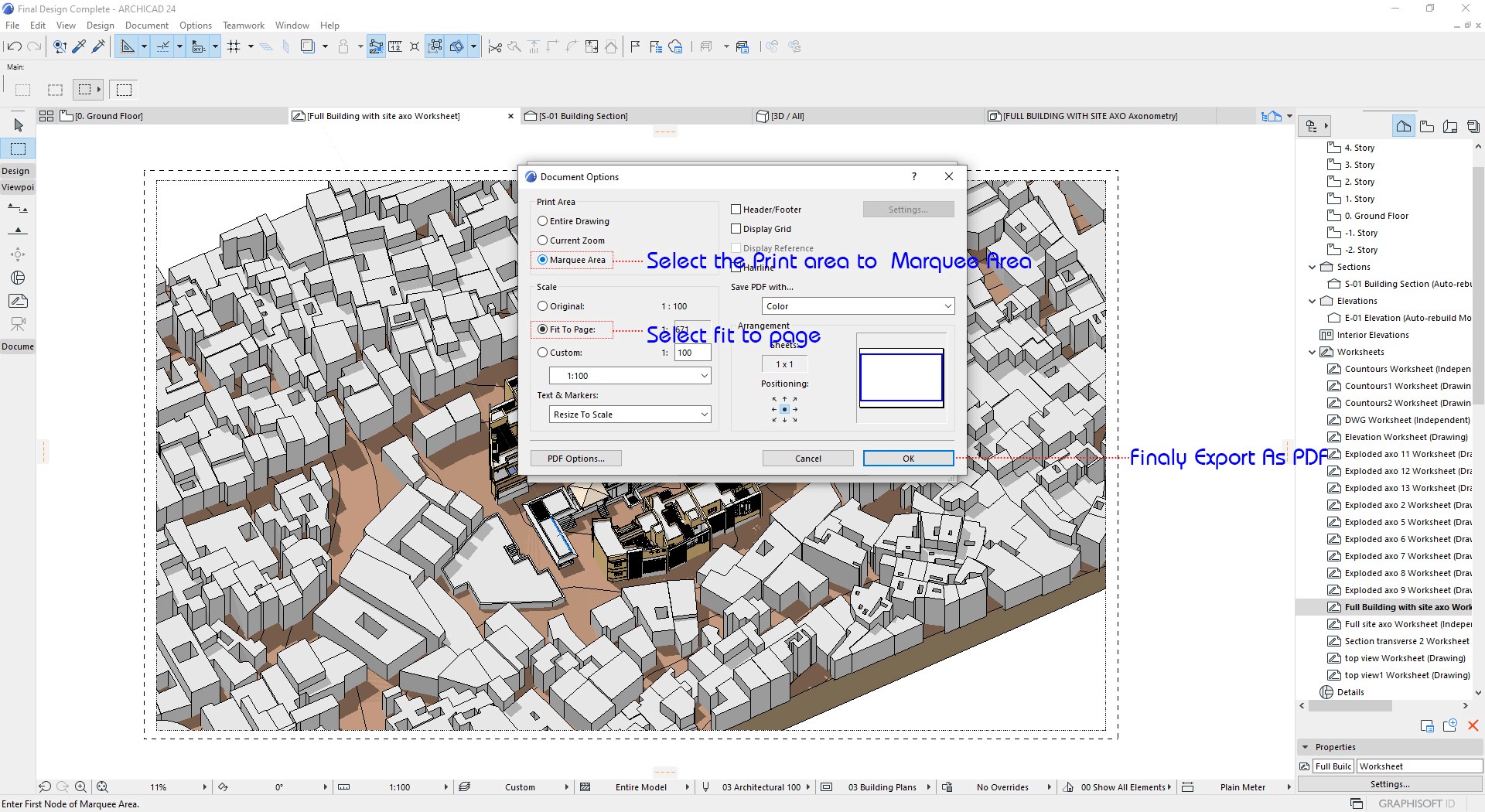

Click on use MARQUEE AREA and FIT TO PAGE as shown in the image and select the page size according to your choice, Finally click OK to save it and it will be exported as a PDF.

STEP 7; Editing the pdf (Illustrator)

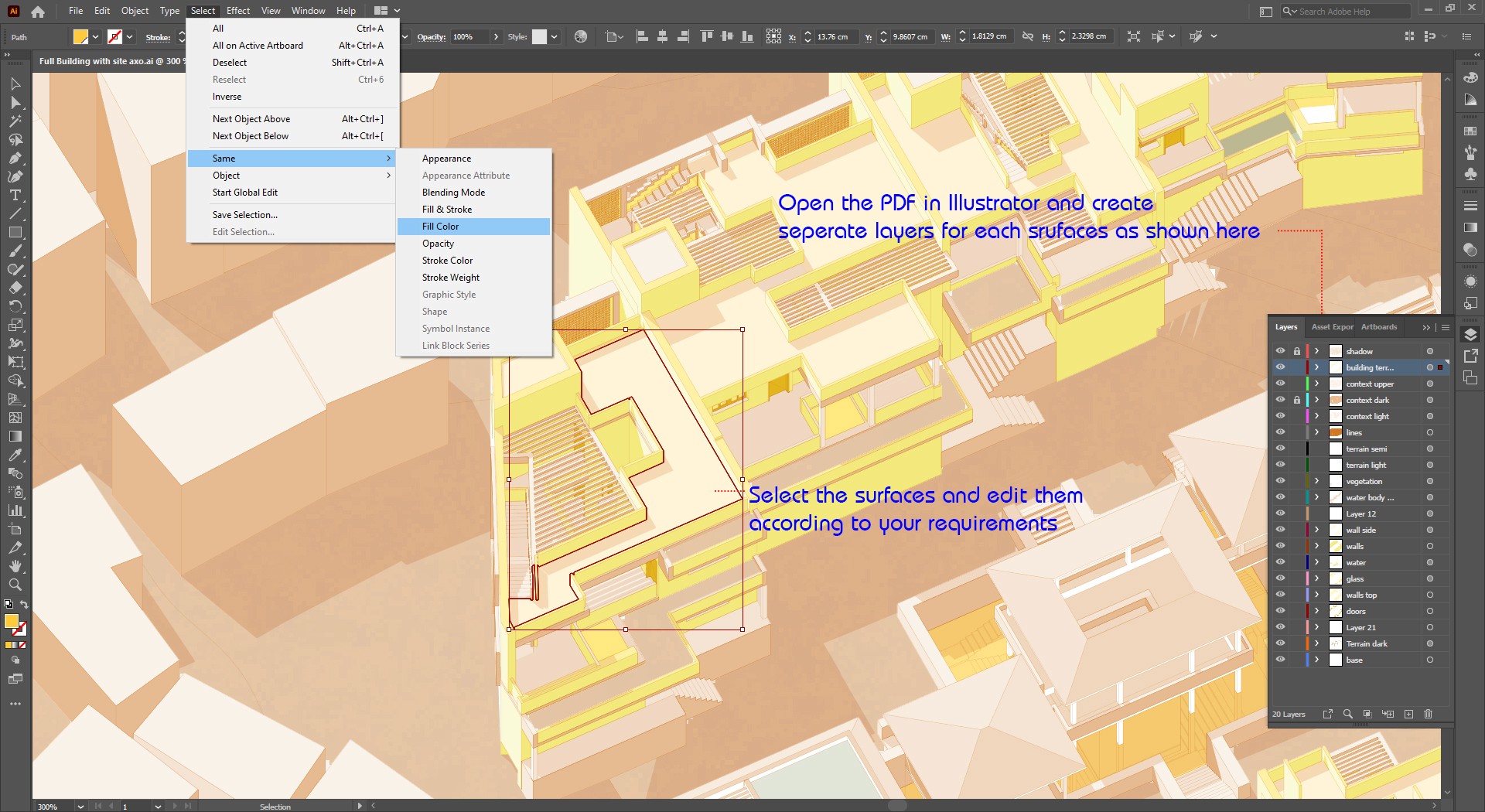

Now open that PDF file in Illustrator and you can edit anything on It by using the Select Same tool by going to the Select Tab respectively as shown in the images. Try to use layers to keep everything separate as it will provide better control over the view for the editing.

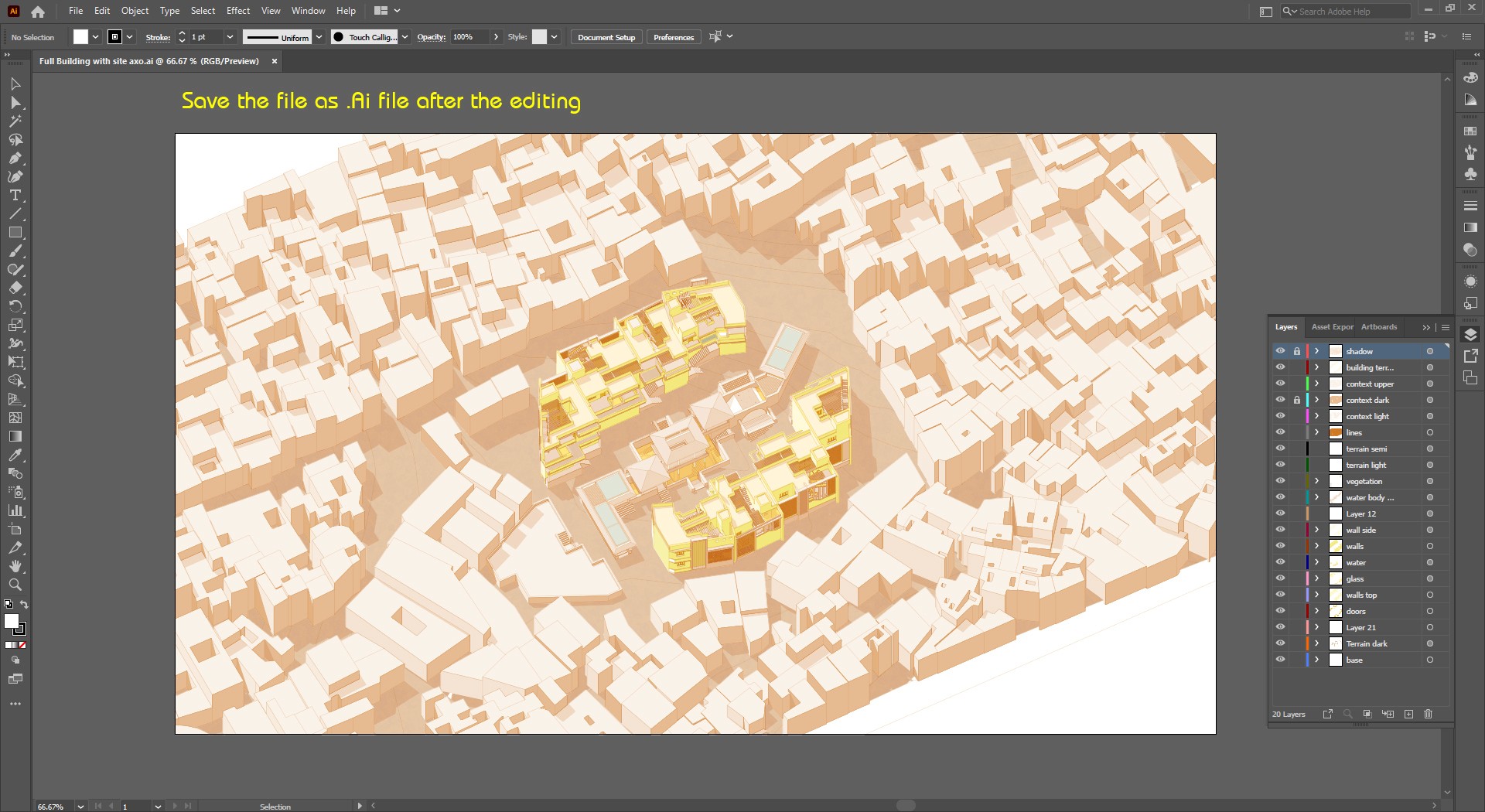

STEP 8: Save as Ai file (Illustrator)

STEP 9: Importing the Ai file into Photoshop

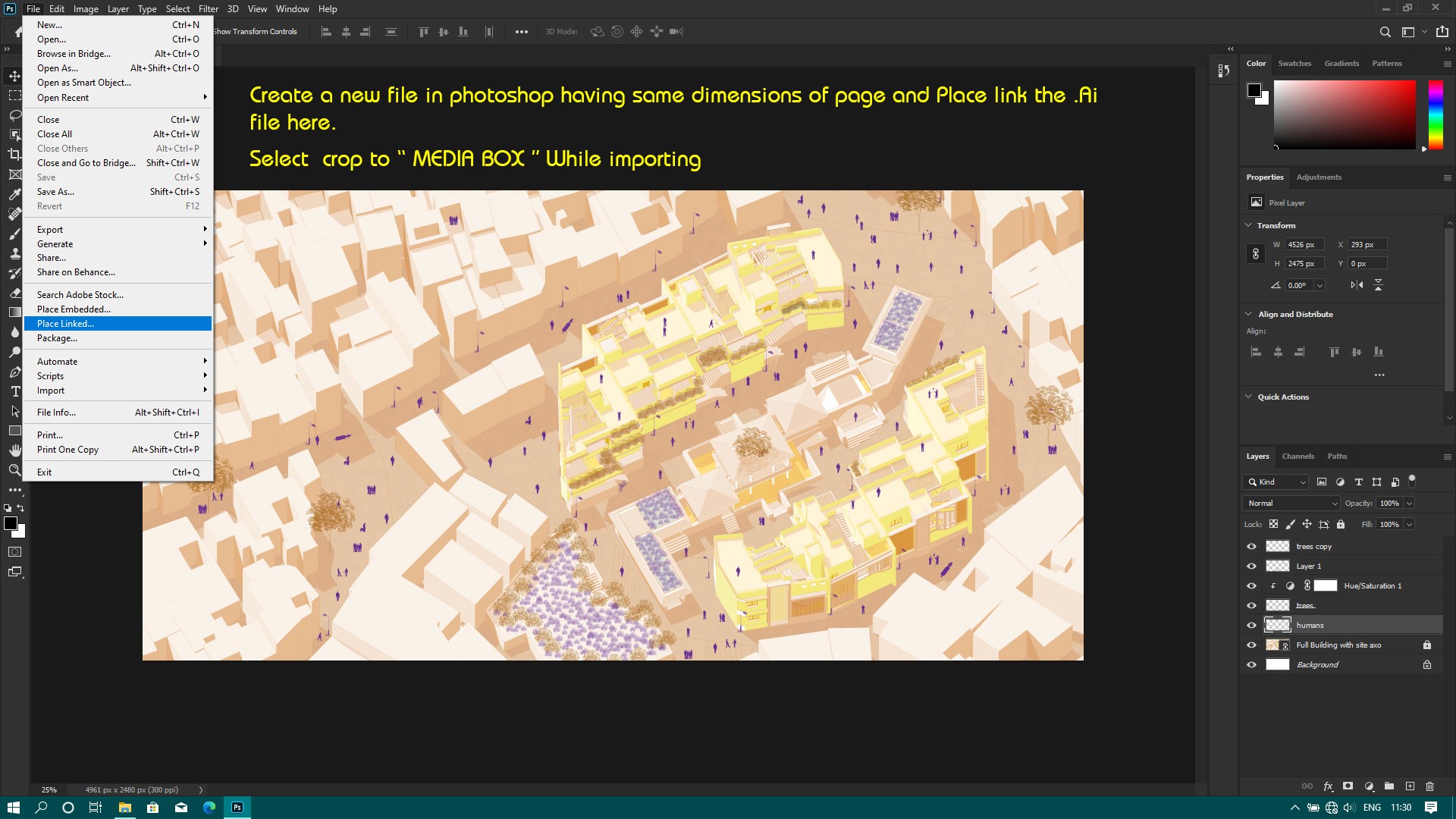

Create a NEW file in the Photoshop and Click on PLACE LINK Option from the Files menu and select the Ai file.

If you want the canvas to be of the same size, then first make the Photoshop panel of the same size as of the Ai file and when importing the Ai file, select on “CROP TO MEDIA BOX”, it will keep the size of the view the same.

STEP 10: Editing & Exporting the final work (Photoshop)

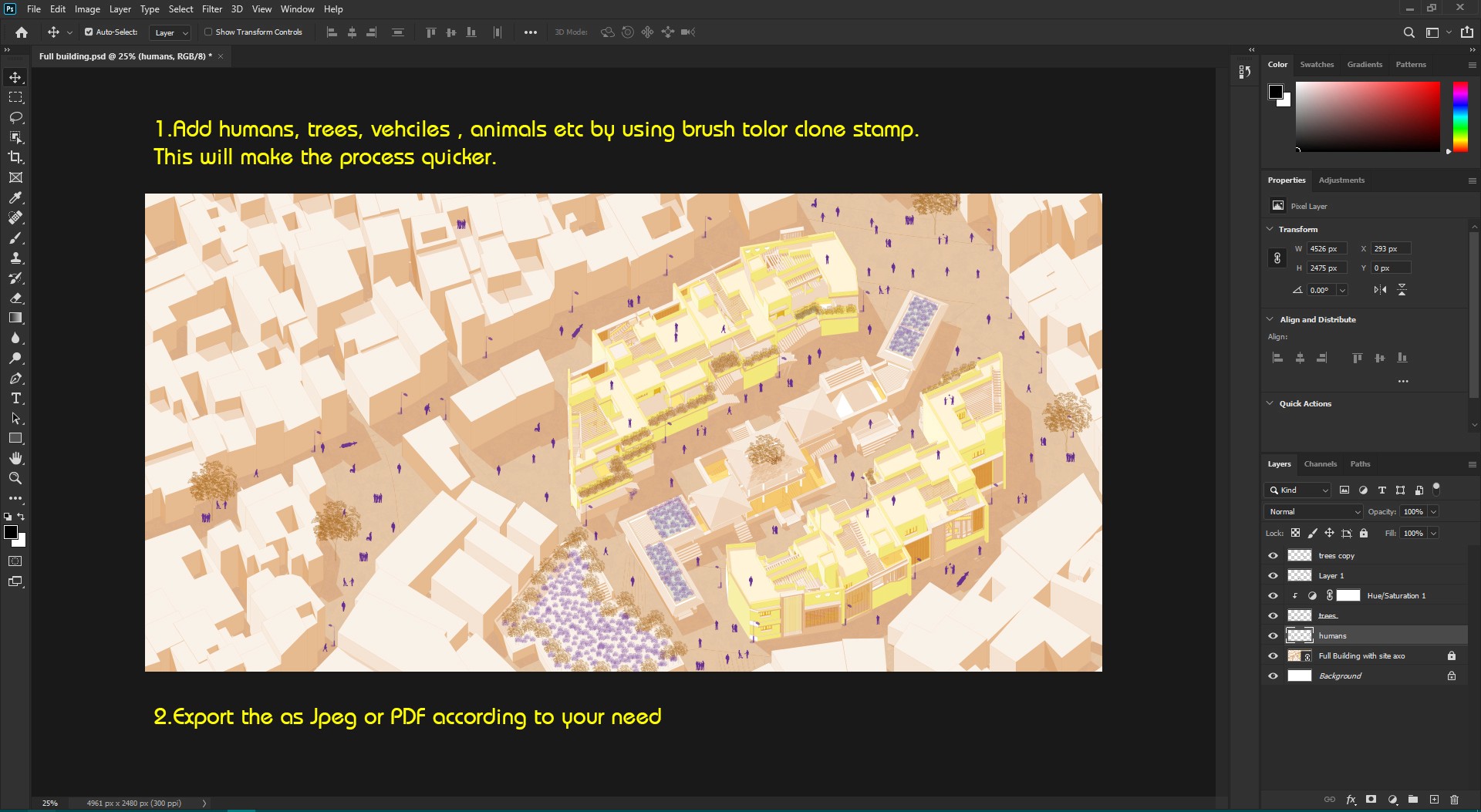

Now you can add various things like, humans, trees, vehicles birds etc. in the view by using either brush tool or clone stamp tool as shown in the images

After finishing, save the .psd file and Export it as a JPEG or PDF file according to your need.

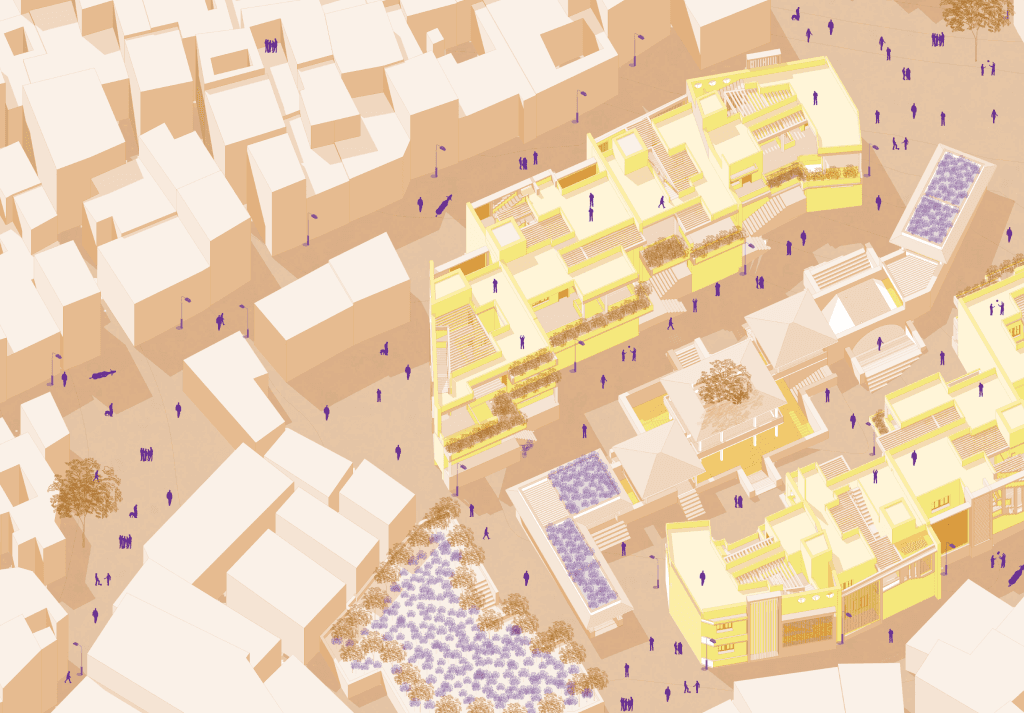

The final output will look like this:

Hope this tutorial opened a different kind of workflow for you and if you ever want to experiment with ArchiCAD, this can be a great first exercise to try.
